Click Pictures to Enlarge

about-img (3)
Sure Fit Base with special panel clamps to fit your kennel Choice of: 1" round tube or square tubing; 1-3/8" round tubing; 1-5/8" or 1-3/4" round tubing
kennel-cover-install-2

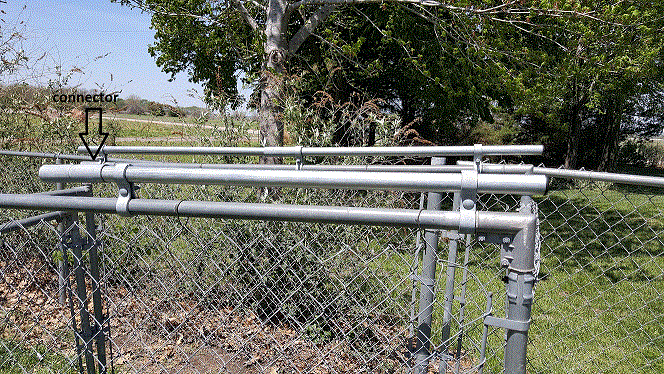

Connector to join tubing together aiding in keeping bugs and water out
kennel-cover-install-3

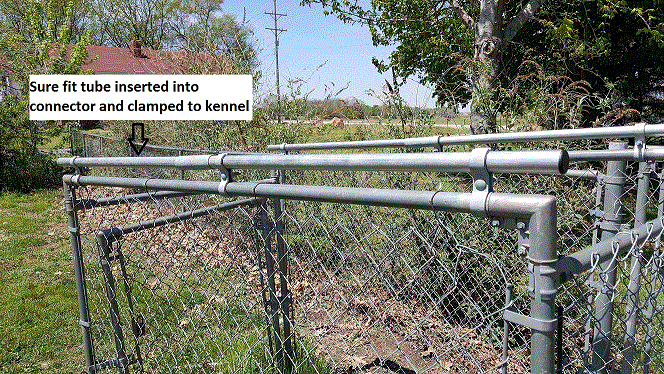

Full-length Sure Fit Base attached to kenne
kennel-cover-install-4

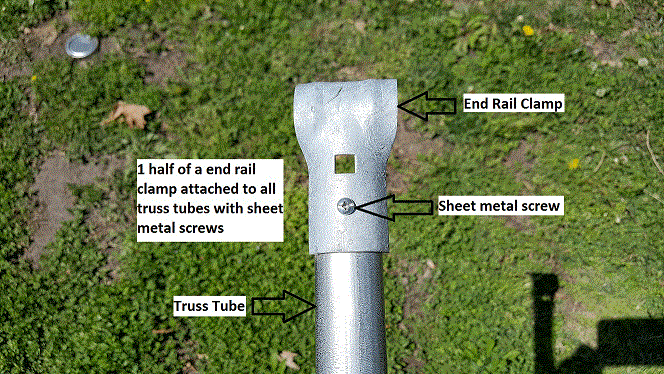

End Rail Clamp attaches to truss arm with furnished sheet metal screw
kennel-cover-install-5

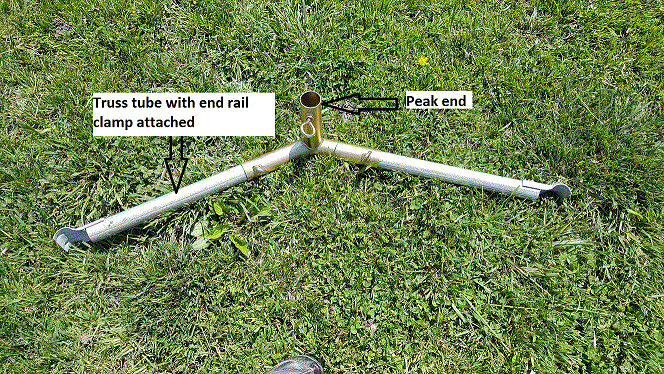

End Rail Clamp attached to truss tube inserted into Peak End fitting to form an End Truss
kennel-cover-install-6

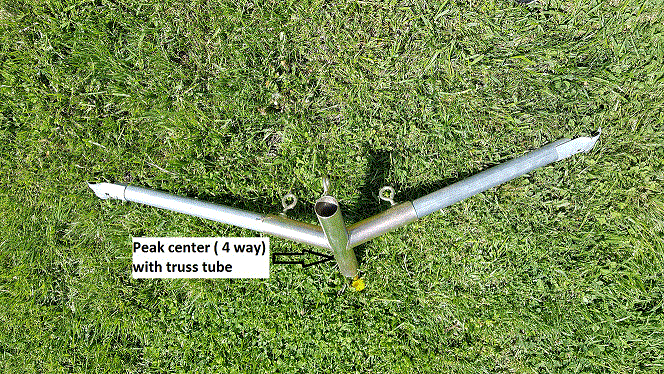

End Rail Clamp attached to truss tube inserted into Peak Center fitting to form a Center Truss
kennel-cover-install-7

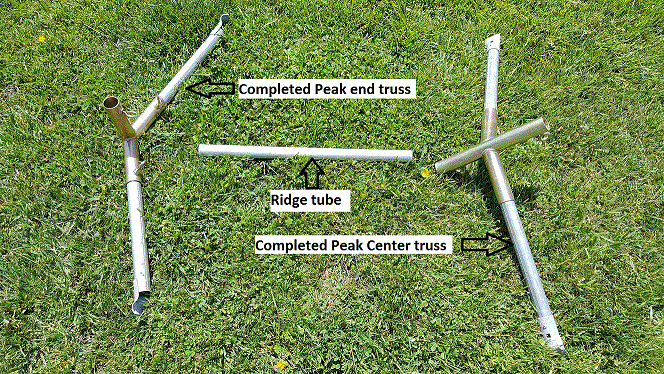

Ridge tube ready to insert into Peak End truss and Peak Center truss
kennel-cover-install-8

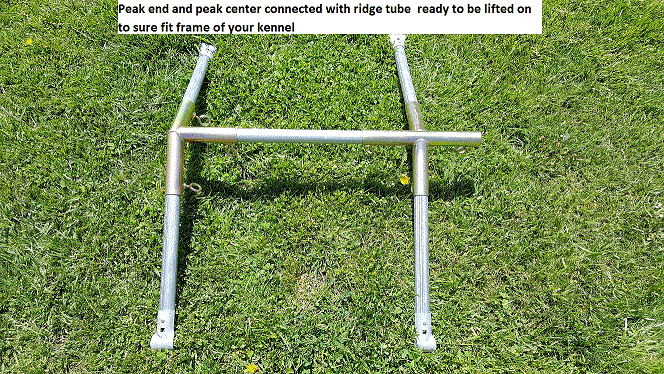

Joined Peak End and Peak Center trusses ready to lift onto Sure Fit Base
kennel-cover-install-9

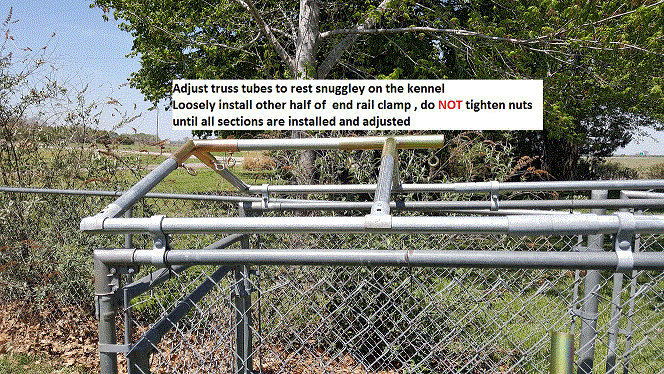

Adjust trusses to rest snuggly on the base. Loosely install other half of End Rail clamps with nut and bolt provided. Tighten End Rail clamps on Peak End truss ONLY.
kennel-cover-install-10

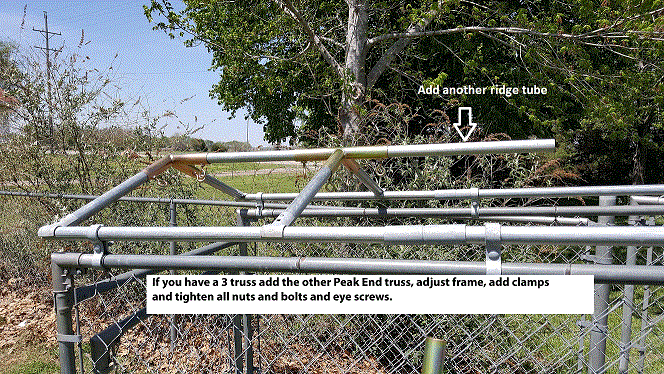

If you have a 3 truss kit add the other ridge tube, the other Peak End truss; adjust trusses for best fit and tighten all nuts and bolts including eye bolts on fittings
kennel-cover-install-11

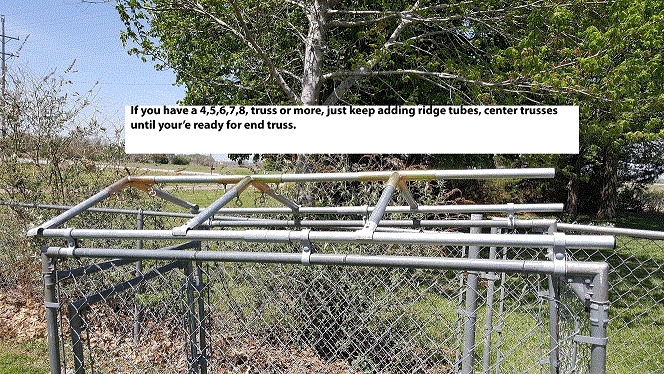

If you have a 4, 5, 6, 7, 8 or more truss kit, keep adding truss tubes and center trusses until you�re ready for end truss
kennel-cover-install-12

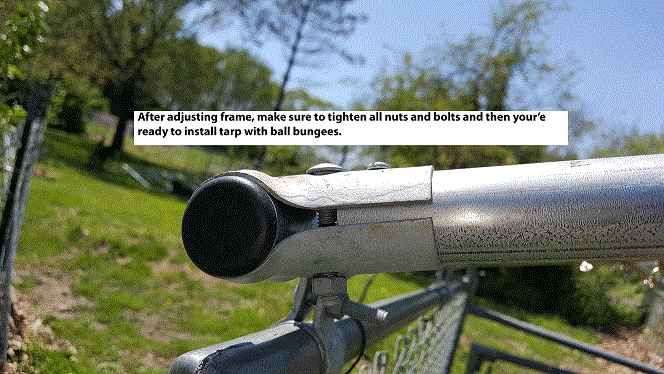

Adjust spacing of trusses to best fit your kennel and tighten all nuts and bolts
kennel-cover-install-13

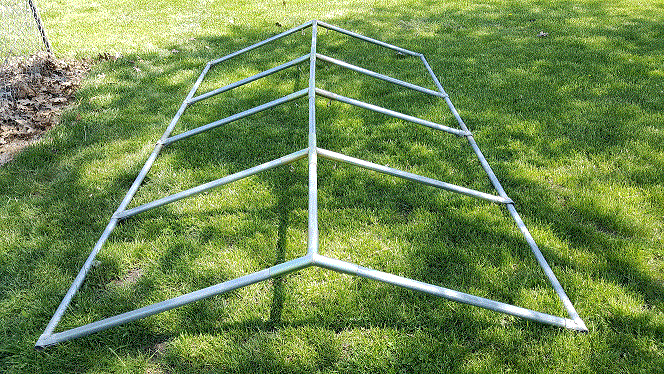

5 truss frame completed on the ground ready to lift onto kennel and attach with the appropriate clamps (due to the weight of the frame this is not advisable unless you have 4 or 5 friends to assist)
kennel-cover-install-14

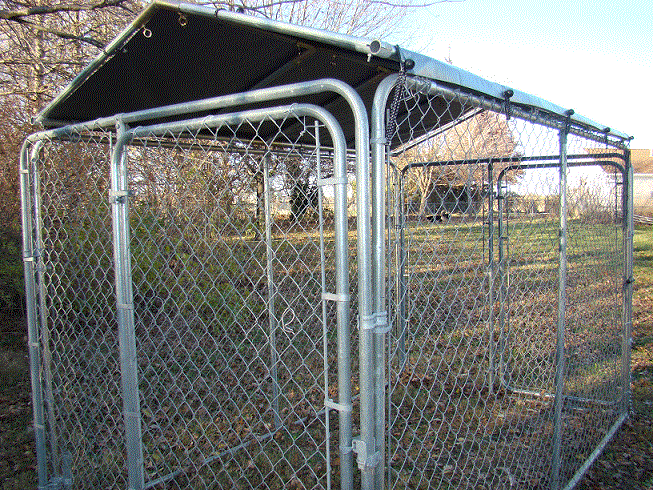

Completed 4 truss kit with Sun-blocker Water Proof tarp installed and secured with ball bungees
